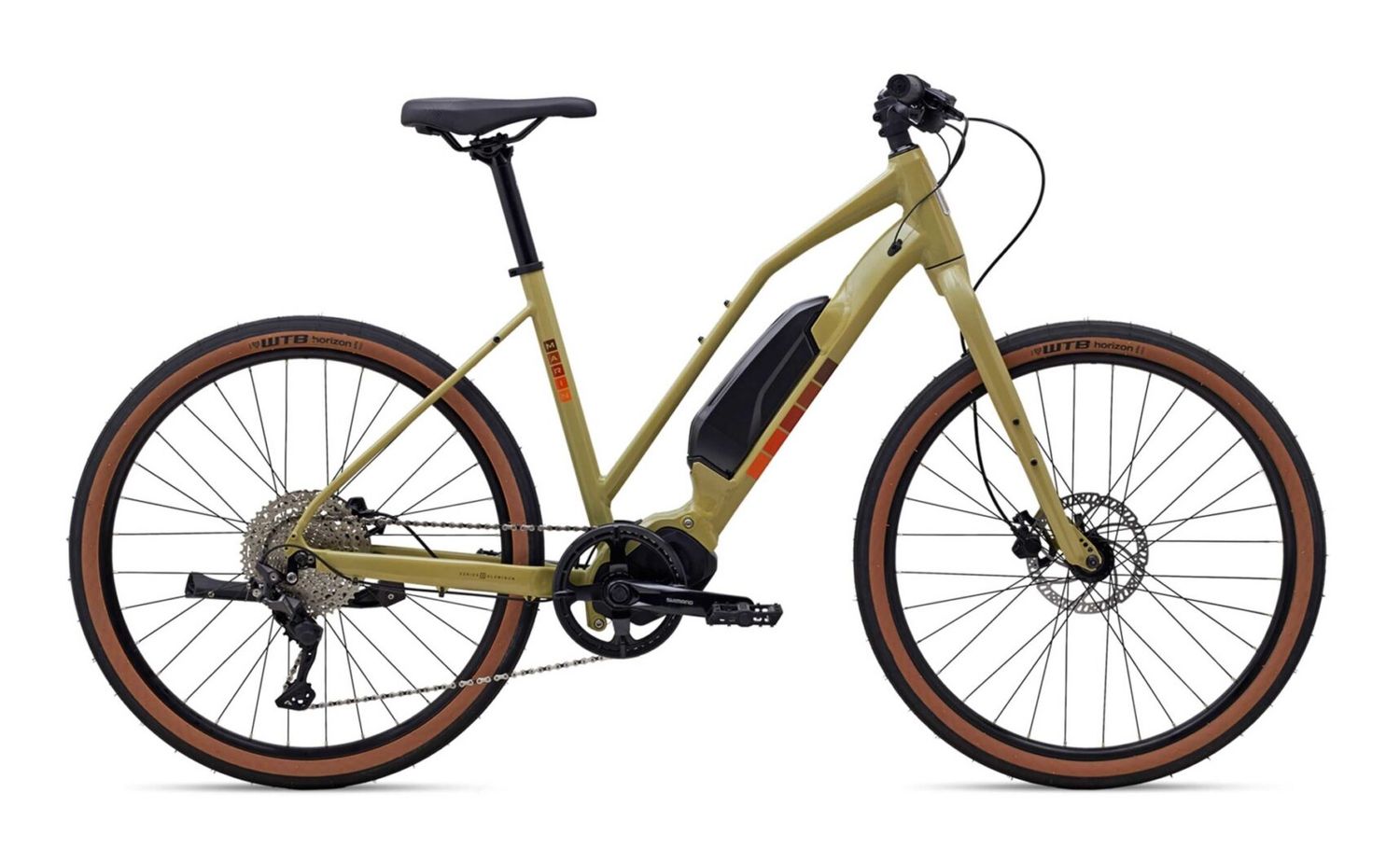

Marin, Sausalito ST E1

• Wheel Size: 650B
• Frame: Aluminum
• Size Range: S, M, L

COMMUTING

CRUISING

MULTI-SURFACE EXPLORING

The power to move through the urban landscape cleanly and efficiently is now as simple as pedaling. The Sausalito family of bikes helps you keep up the pace with a fun and lively assist to flatten hills and get you from A to B with a fresh smile, as well as clean clothes and a smart look.

Specifications

• Frame

  Series 3 Butted and Formed 6061 Aluminum, 650B Wheel, Low-Step Design, Forged Motor Mount, Hydroformed Downtube Battery Mount, Integrated Wiring, Internal Housing, Kickstand, Rack, and Fender Mounts

• Front Suspension

  Steel, Moto Blade, Disc Specific, Fender and Rack Eyelets

• Rims

  Marin Aluminum Double Wall, Disc Specific

• Hub, Rear

  Forged Alloy, Disc Specific, 32H

• Hub, Front

  Forged Alloy, Disc Specific, 32H

• Spoke, Nipples

  14g Black Stainless Steel

• Tires

  WTB Horizon, 650Bx47, Wire Bead

• Derailleur, Rear

  Shimano Deore 10-Speed

• Derailleur, Front

  -

• Shift Lever

  Shimano Deore 10-Speed

• Crankset

  Shimano, Aluminum w/ 44T Steel Chairing

• Motor

  Shimano STEPS E5000 System

• Bottom Bracket

  -

• Chain

  KMC X10E

• Cassette

  Shimano Deore 10-Speed 11-46T

• Brake, Front

  Tektro HD-M275 Hydraulic, 180mm Rotor

• Brake, Rear

  Tektro HD-M275 Hydraulic, 180mm Rotor

• Brake Levers

  Tektro Hydraulic

• Handlebar

  Marin MiniRiser Alloy

• Stem

  Marin Alloy

• Grips

  Marin County

• Headset

  FSA No. 57E

• Seatpost

  Marin Alloy, 30.9mm

• Saddle

  Marin City Plush

• Pedals

  Nylon Platform

• Kickstand

  Rear Mount Alloy

• Battery

  Shimano BT6010, 418Wh
